How to Choose the Best AC Geared Motor Manufacturer in Gujarat
AC geared motors are widely used in machines that require controlled speed, smooth movement and high torque. They combine an AC electric motor with a gearbox to reduce the motor speed and increase the output torque. This combination makes them suitable for conveyors, mixers, packaging machines, material-handling equipment and many other industrial systems.
However, selecting an AC geared motor is not only about choosing motor power or RPM. The quality of the motor, gearbox design, gear ratio, mounting arrangement and technical support can directly affect machine performance.
Therefore, businesses should carefully evaluate an AC Geared Motor Manufacturer in Gujarat before placing an order. This guide explains the important factors buyers should check to select a suitable manufacturer and motor for their application.

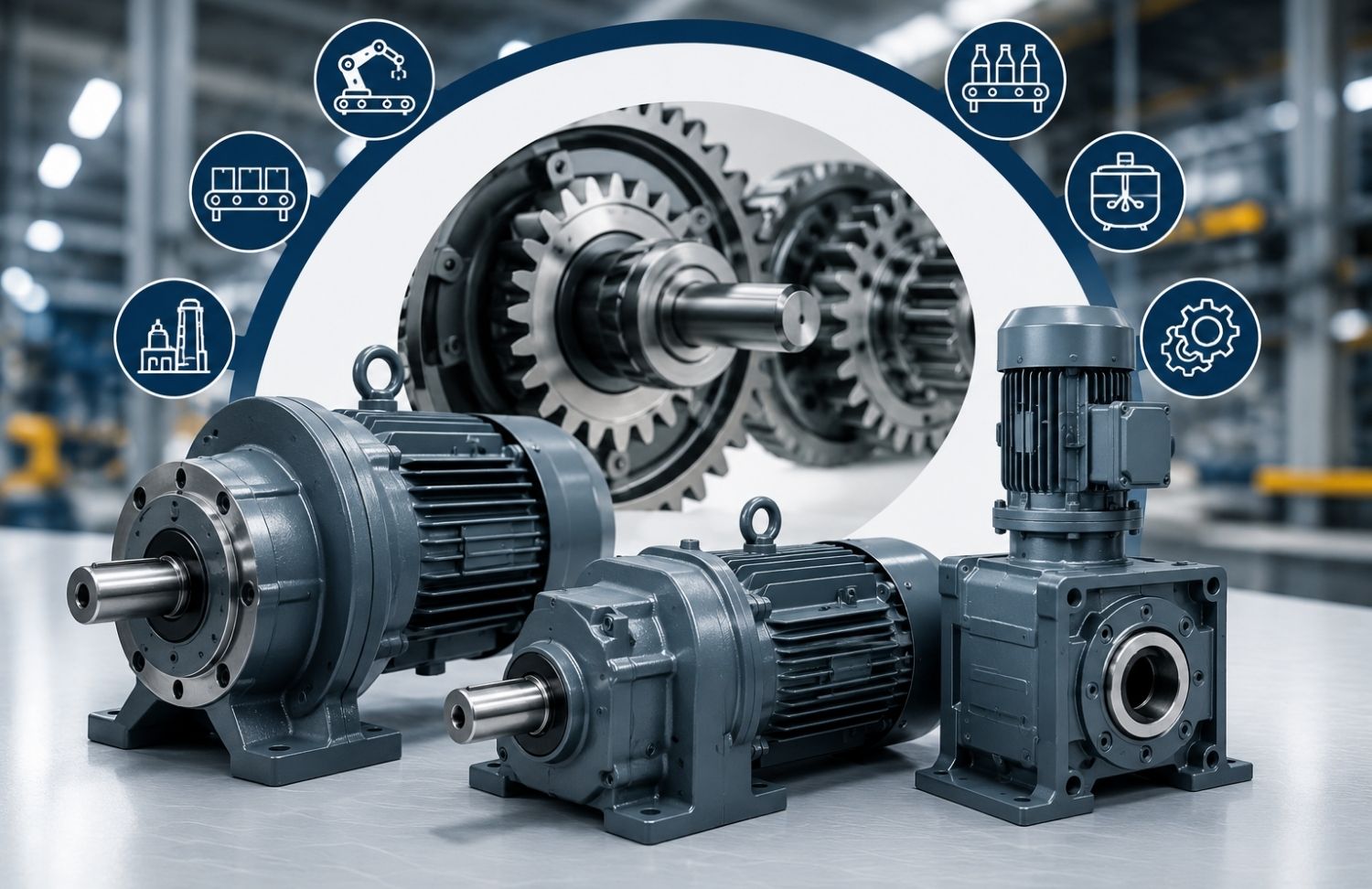

What Is an AC Geared Motor?
An AC geared motor is an integrated drive system consisting of an alternating-current motor and a speed-reduction gearbox. The gearbox reduces the motor’s high rotational speed and produces higher torque at the output shaft.
For example, an AC motor may run at a high input speed, but the connected machine may require slower and more powerful movement. The gearbox changes the speed and torque according to the required gear ratio.
AC geared motors can provide:
- Controlled output speed
- Higher output torque
- Compact machine design
- Smooth power transmission
- Reliable continuous operation
- Different mounting options
- Better control over industrial movement
Geared motors are available in several designs, including helical, worm, parallel-shaft, planetary and helical-worm configurations. Each design has different advantages depending on speed, torque, space and application requirements.
Why Choosing the Right Manufacturer Matters
A geared motor is often a critical part of an industrial machine. If it is incorrectly selected, the machine may face overheating, insufficient torque, excessive vibration, premature gear wear or frequent breakdowns.
A reliable manufacturer does more than supply a standard motor. The manufacturer should understand the machine’s operating conditions and recommend a suitable combination of:
- Motor power
- Gearbox type
- Output RPM
- Required torque
- Gear ratio
- Mounting position
- Shaft arrangement
- Duty cycle
- Load condition
- Environmental protection
Choosing an experienced AC Geared Motor Manufacturer in Gujarat can help reduce selection mistakes and improve the long-term reliability of the equipment.
Check the Manufacturer’s Product Range
The first step is to examine the manufacturer’s complete product range. Different machines require different types of geared motors.
A capable manufacturer should ideally provide multiple options, such as:
- Helical geared motors
- Worm geared motors
- Inline geared motors
- Parallel-shaft geared motors
- Brake geared motors
- AC induction motors
- Double-reduction gearboxes
- Custom motor and gearbox combinations
A broad product range allows buyers to compare different solutions instead of using the same geared motor for every application.
For example, helical geared motors are commonly selected where efficiency, smooth operation and continuous duty are important. Worm geared motors can be useful where compact installation and higher reduction ratios are required.
Share the Required Output Torque
Torque is one of the most important factors when selecting an AC geared motor.
Motor power alone does not confirm whether the drive can move the required load. The manufacturer also needs to know the torque required at the gearbox output shaft.
The torque requirement can depend on:
- Total load weight
- Conveyor length
- Drum or pulley diameter
- Starting load
- Operating speed
- Acceleration time
- Incline angle
- Friction
- Shock loading
- Number of operating hours
Selecting a motor with insufficient torque may prevent the machine from starting under load. Selecting an unnecessarily oversized motor may increase the purchase price, energy use and machine size.
A good manufacturer should calculate or verify the required torque before recommending a model.
Confirm the Output RPM and Gear Ratio
Confirm the Output RPM and Gear Ratio
Industrial AC motors generally operate at a higher speed than the machine’s required output speed. The gearbox reduces this speed through a selected gear ratio.
The basic relationship is:
Gear Ratio = Motor Input Speed ÷ Required Output Speed
For example, if a motor operates at approximately 1440 RPM and the machine requires 48 RPM, the approximate reduction ratio will be:
1440 ÷ 48 = 30:1
Actual selection may vary because of motor slip, load conditions, gearbox efficiency and available standard ratios.
Before contacting an AC Geared Motor Manufacturer, buyers should provide:
- Motor input RPM
- Required output RPM
- Preferred gear ratio, when known
- Minimum and maximum operating speed
- Whether variable-speed operation is needed
Speedo Gear’s published AC induction motor range includes speed options such as 960, 1440 and 2880 RPM. Its inline helical geared motor range includes ratios from 3.5:1 to 80:1.
Select the Right Gearbox Type
The gearbox type affects efficiency, noise, torque capacity, mounting flexibility and maintenance.
Helical Geared Motor
Helical gears have angled teeth that engage gradually. This supports smoother operation and lower noise compared with many basic gear arrangements.
Helical geared motors are commonly considered for:
- Conveyors
- Material-handling systems
- Mixers
- Process machinery
- Industrial production lines
- Continuous-duty applications
Worm Geared Motor
A worm geared motor uses a worm and worm-wheel arrangement. It can provide a high reduction ratio in a compact structure.
It may be considered for:
- Packaging equipment
- Small conveyors
- Food-processing machinery
- Lifting mechanisms
- Indexing systems
- Space-limited installations
Parallel-Shaft Geared Motor
Parallel-shaft designs can provide a compact drive arrangement when the input and output shafts need to remain parallel.
They can be suitable for conveyors and material-handling machines where installation space is limited.
Brake Geared Motor
A brake geared motor is useful where the load must stop quickly or remain in a fixed position after power is disconnected.
Common applications include:
- Cranes
- Hoists
- Lifting systems
- Rotating fixtures
- Positioning equipment
- Material-handling machines
Speedo Gear offers helical geared brake motors for applications such as cranes, heavy-duty rotating fixtures and precision-engineering systems.
Verify Motor Power, Voltage and Phase
The motor must match the available electrical supply at the installation site.
Provide the following information to the manufacturer:
- Required motor power in HP or kW
- Single-phase or three-phase supply
- Operating voltage
- Supply frequency
- Starting method
- Variable-frequency drive requirement
- Number of starts per hour
Three-phase AC motors are widely used in industrial machinery because they support dependable operation in production environments.
Speedo Gear publishes AC induction motor options from 0.37 kW to 7.5 kW, with a rated voltage of 415 V and 50 Hz frequency. Buyers should confirm final electrical specifications directly with the manufacturer for their selected model.
Check the Duty Cycle and Operating Hours
A motor used for a few minutes at a time has different requirements from one operating continuously for multiple shifts.
Tell the manufacturer whether the application involves:
Confirm Mounting Position and Available Space
Even a technically suitable geared motor may not fit the machine if the mounting arrangement is incorrect.
Common mounting options include:
- Foot mounting
- Flange mounting
- Horizontal mounting
- Vertical mounting
- Hollow-shaft mounting
- Solid-shaft mounting
- Shaft-mounted installation
The mounting position can also affect lubrication and gearbox operation. Therefore, it should be finalized before manufacturing or ordering the unit.
Provide the manufacturer with:
- Machine drawing
- Available installation space
- Shaft direction
- Mounting-hole dimensions
- Output-shaft diameter
- Horizontal or vertical orientation
- Connection details
- Required flange dimensions
Speedo Gear offers foot- and flange-mounted helical gear motor arrangements and different drive configurations for horizontal and vertical applications.
Evaluate Material and Construction Quality
The durability of an AC geared motor depends heavily on its construction.
Important components include:
- Gear material
- Shaft material
- Bearings
- Gearbox housing
- Oil seals
- Motor winding
- Insulation
- Cooling system
- Lubricant
- Fasteners
Ask the manufacturer about the materials, machining process, heat treatment, bearing selection and quality inspections used during production.
For demanding industrial conditions, the gearbox housing should provide sufficient rigidity and support proper gear alignment. The gears and shafts should be accurately manufactured to reduce wear, noise and vibration.
Common Applications of AC Geared Motors
AC geared motors are used in many industrial systems, including:
- Belt conveyors
- Roller conveyors
- Packaging machines
- Mixing equipment
- Food-processing machinery
- Pharmaceutical machinery
- Textile machines
- Plastic-processing machines
- Printing machines
- Material-handling systems
- Pumps and process equipment
- Cranes and hoists
- Rotary tables
- Industrial automation systems
- Special-purpose machines
Why Work With a Gujarat-Based Manufacturer?
Choosing a Gujarat-based manufacturer can provide practical advantages for industries located in Ahmedabad, Vadodara, Surat, Rajkot, Sanand, Changodar and nearby regions.
Possible benefits include:
Speedo Gear: AC Geared Motor Manufacturer in Gujarat
Speedo Gear Pvt. Ltd. is an Ahmedabad-based manufacturer and exporter of gearboxes and gear motors. Its product range includes helical gear motors, worm gear motors, AC induction motors, inline helical gearboxes, NMRV gearboxes, parallel-shaft gearboxes and other industrial power-transmission products.
The company’s helical geared motor range includes foot- and flange-mounted options, while its AC induction motor range covers different power and speed selections for general industrial applications.
Businesses searching for an AC Geared Motor Manufacturer in Gujarat can share their motor power, output RPM, gear ratio, mounting position, application and load details with Speedo Gear for suitable product selection.
Conclusion
Choosing the best AC geared motor manufacturer requires more than comparing product prices. Buyers must evaluate the manufacturer’s product range, technical knowledge, torque calculation, gear ratios, mounting options, construction quality and after-sales support.
Before requesting a quotation, clearly define the machine load, required output speed, motor power, operating hours and installation dimensions. Accurate application details help the manufacturer recommend a geared motor that offers reliable performance, controlled speed and sufficient torque.
For industrial machinery, conveyors, packaging systems, material-handling equipment and process applications, Speedo Gear offers multiple motor and gearbox solutions from Ahmedabad, Gujarat.
FAQs
An AC geared motor combines an AC electric motor with a gearbox. The gearbox reduces the motor speed and increases the torque available at the output shaft.
Start by identifying the required output torque, output RPM, motor power, gear ratio, mounting position, duty cycle and available electrical supply.
Helical and worm geared motors are commonly considered for conveyors. Final selection depends on the load, conveyor speed, pulley diameter, operating hours and starting conditions.
An AC motor provides direct high-speed rotational power. An AC geared motor includes a gearbox that reduces the speed and increases the output torque.
The approximate gear ratio is calculated by dividing the motor input speed by the required gearbox output speed.
A properly selected helical geared motor can be used for continuous-duty applications. The manufacturer must confirm the motor power, torque, service factor, lubrication and thermal capacity.
Many three-phase AC geared motors can operate with a variable-frequency drive, but compatibility, cooling and speed range should be confirmed with the manufacturer.
Provide the application, required output RPM, load or torque, motor power, voltage, phase, mounting type, shaft size, operating hours and quantity.
